GEE-BM105

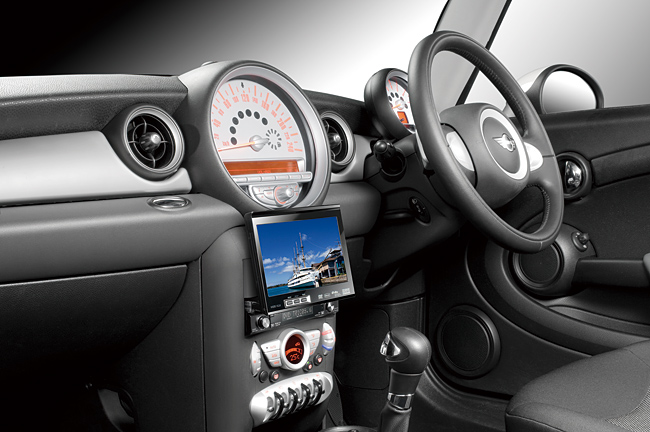

GEE-BM105 Installation example

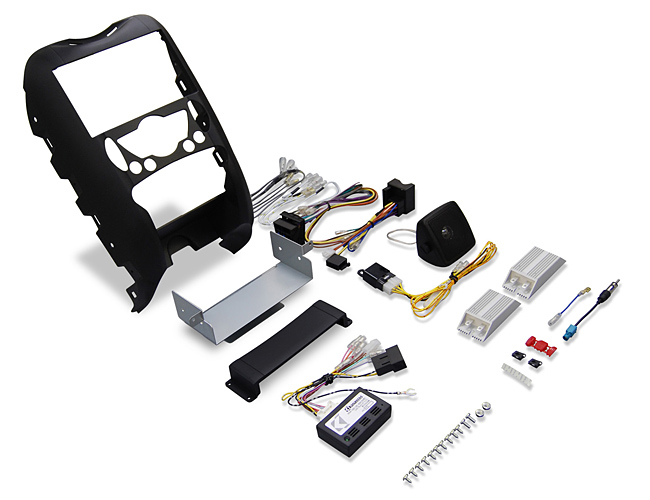

  • 1.Panels (A) (B)
  • 2.Bracket
  • 3.Cover
  • 4.CAN-Bus interface
  • 5.Wiring connector
  • 6.Sleep mode relay
  • 7.Speaker unit
  • 8.Impedance adjuster
  • 9.Speaker fixing tape
  • Etc.
Registered design panel in China and Taiwan.
Designed Installation Size == 1 DIN
Compatibility
Model Model Year
BMW MINI(R56) 2007 - up
* Our products are designed for the Japanese market. Foreign versions might be incompatible.
* If Double-DIN size is desired, installation set(「GEE-BM201」)is necessary (sold separately).
* When installing a car navigation system,「GEE-BM105」is recommended. When installing a car audio system,「GEE-BM106」is recommended.

This set is compatible with the MINI CLUB MAN.
Car models with the Factory optional Harman/Kardon HI-FI system, MINI HI-FI round speakers system, or that have a navigation system have not been examined.
When installing in a car with PDC(Park Distance Control system), optional set 「GEE-X002(coming soon)」 is necessary (sold separately ).
Factory audio becomes inoperable, but is retained. The volume control, ON/OFF dial, and CD loading slot cease to function and are hidden by a cover.
Display indicators: power supply, ON,AUX., cease to function. The Factory optional steering switch ceases audio function.
Chimes are retained though use of the Factory radio’s Right front speaker output connected to center speaker provided in this set.
There is a standby electric current when the ignition key is turned off. The standby electric current of the car AV can be upgraded to 100mA.(The standby electric current of a general car AV is around 10mA.)
Car models with the Factory optional "alarm system (security) " have not been examined.
