TBXE-T002

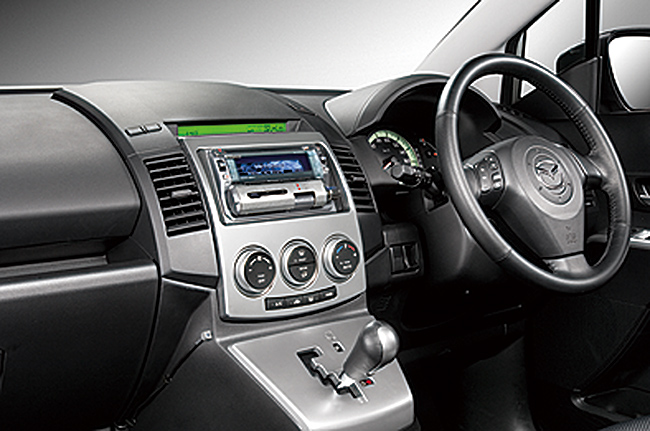

TBXE-T002 Installation example

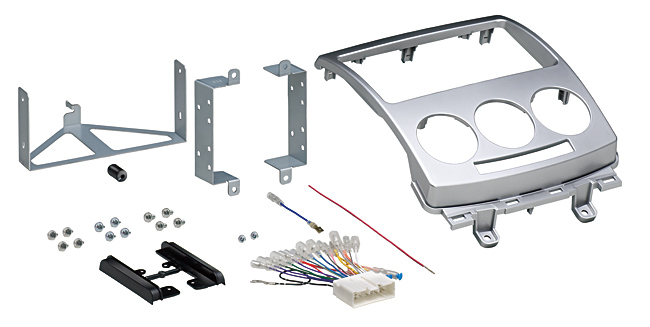

  • 1.Panel(L)(R)
  • 2.Bracket(1set)
  • 3.Rear bracket
  • 4.24P connector
  • 5.Speed pulse signal cord
  • Etc.
Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model No. of Speakers Model Year
MAZDA 5 4
6
Feb.2005 - July 2009

※ This model is compatible with the Factory DVD car navigation system but the TV function is disabled. However, the TV function of the aftermarket car navigation system operates.
※ Car models with factory optional electric sliding doors (except for models with the Factory car navigation system) do not have a speed pulse signal lead for aftermarket equipment. It is necessary to connect the speed pulse signal cord included in this set.
● On equipped vehicles, installation of optional parts FPCE-T001 enables the operation of the audio remote control switch on the steering wheel.
● By using an optional UAE-Y201DV, an on-dash monitor can be mounted without disturbing the frontal view.
