TBXE-T010
This is the installation set which install car AV by using brackets and wirings connector including this set.

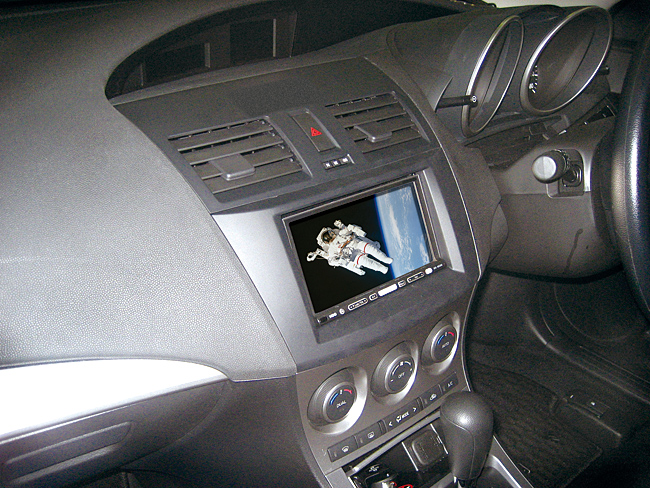

TBXE-T010 Installation example

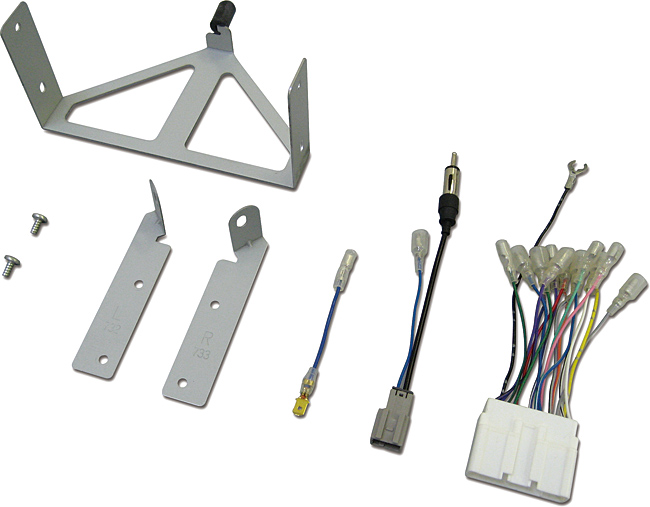

  • 1.Rear bracket
  • 2.Bracket(L)(R)
  • 3.Antenna power supply conversion cord
  • 4.Antenna plug conversion cord
  • 5.Power supply / front speakers / rear speakers Connector (24P)
  • 6.Screws
 Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model Model Year Type
MAZDA3 4-Door
MAZDA3 5-Door
MAZDA3 MPS		 Jun.2009 - up Non-Factory audio

● Car model with BOSE sound system and with Exclusive special MAZDA3 panel, with Factory navigation system have not been tested.
● As cars with steering wheel mounted audio controls are disable, installation of optional parts FPCE-T001 enables the operation of steering wheel mounted audio controls.
● Car AV equipment maximum depth is 179mm.
