TBXE-T011
This is the installation set which install car AV by using brackets and wirings connector including this set.

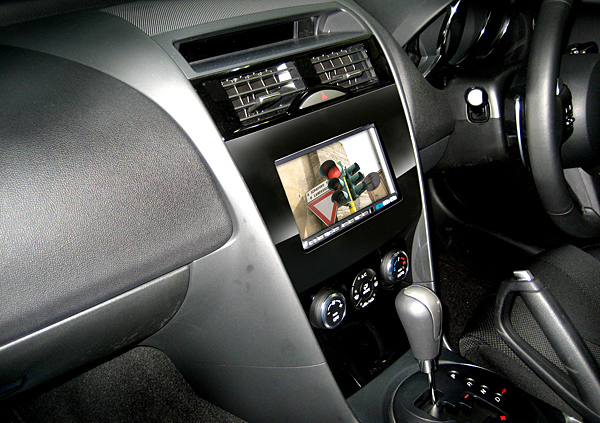

TBXE-T011 Installation example

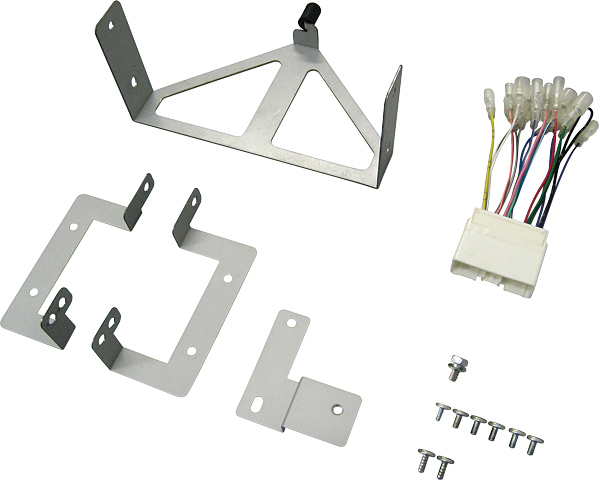

  • 1.Rear bracket (with rubber bushing)
  • 2.Power supply/front speakers/rear speakers Connector (24P)
  • 3.Bracket (L)(R)
  • 4.Side bracket
  • 5.Screws
 Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model Model Year Type
RX-8 Mar.2008 - June 2012 Non-Factory audio

● Car models with Factory HDD navigation system have not been tested.
● Car models with BOSE sound system use a separate amplifier.
Optional MAZDA sound system translator TBXE-X001 is required for proper operation.
Car models with BOSE sound system (model year May 2009 – up) have not been tested.
● Model year March 2008 – May 2009, Factory option audio panel center is required.
● Model year March 2008 – May 2009, dimming function for hazard lamp switch is disabled.
● Car AV equipment is installed on a 30 degree angle and may not be suitable for some car AV equipment. Please confirm with the Car AV manufacturer before installation.
● As cars with remote audio control switches on the steering wheel are disable, installation of optional kit 「FPCE-T001」 enables the audio remote control functions on the steering wheel.
