TBXE-Y018
For car models with Super-live Sound Systems (7 or 9 speakers), panel and wiring included in this set are usable without changing the amplifier and/or speakers.
Fader, volume control and mute can be operated on the steering wheel with the Factory remote A/V switch.

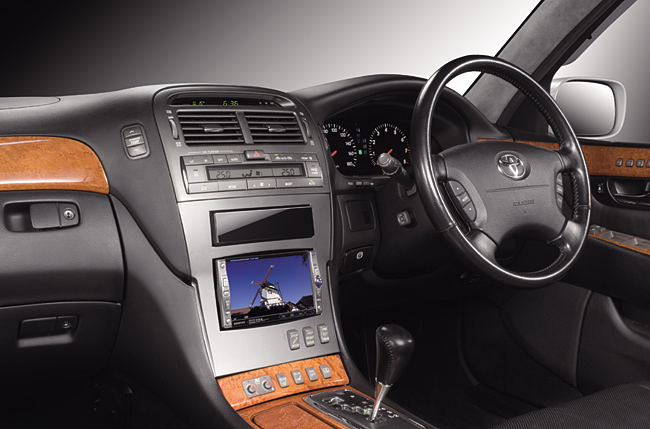

TBXE-Y018 Installation example

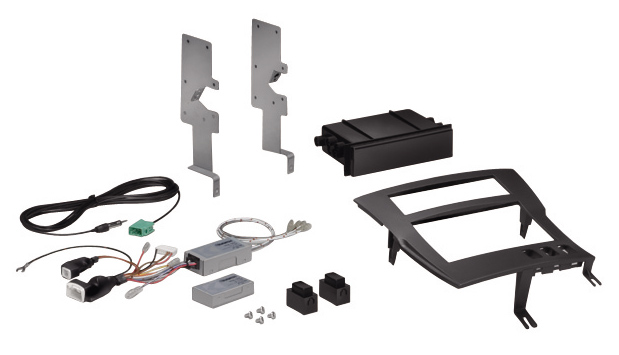

  • 1.Panel
  • 2.Bracket
  • 3.Super-live Sound System(SLS)translator connector(20/6/8P)
  • 4.Control box
  • 5.Blank Switch holder
  • 6.1DIN-size pocket
  • 7.Antenna power supply cord
  • Etc.
 Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model No. of Speakers Model Year
LS430(ucf 30 I) 7
9		 Aug.2000 - Aug.2003

● Cannot be installed on cars with an Electro Multi Vision system (EMV) /Mark Levinson premium sound system.
● The Factory CD changer becomes inoperable.
● The FM diversity antenna becomes disabled on car models with a Factory FM diversity antenna.
● The rear audio air conditioning controller becomes disabled on so equipped car models.
● It is necessary to transfer the lower Factory switch.
● Eyeglass compartment panels cannot be replaced.
● AV-DSP function and fader will not function, because the amplifier has a 2ch input.
● Factory amplifier, fader, volume control and mute will be enabled by using this set.
● Movable front AV display may contact or interfere with the shift lever.
● Factory hands free function becomes disabled.

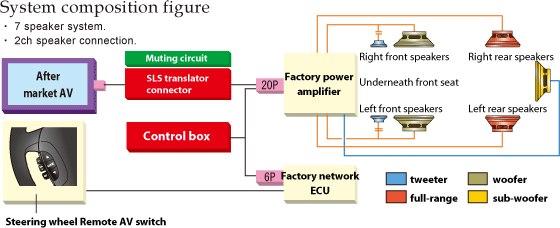

System composition figurepage top
