TBXE-T008
This set includes our unique panel, brackets and wiring needed to install the latest A/V head unit.

TBXE-T008 Installation example

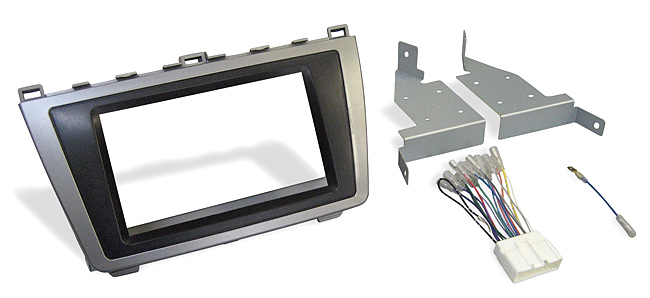

  • 1.Bracket (L)(R)
  • 2.Power supply/front speakers / rear speakers Connector(24P)
  • 3.Antenna power supply conversion cord
  • 4.Screws
 Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model Model Year Type
MAZDA6 Jun.2008 - Nov. 2012 Exclusive special MAZDA6 panel,
designed to fit the MAZDA6's unique dash.

● This set is compatible with car with the Factory navigation system.
● Automatic Level Control (ALC）becomes disabled.
● Car models with the BOSE sound system use a separate amplifier.
Optional MAZDA sound system translator TBXE-X001 is required for proper operation.
● The information-center-display and audio display (sound volume /tuning for car radio station /CD track) function on become inoperative.
● AUX jack becomes disabled.
● CF-Net is disable, installation of optional parts FPCE-T001 enables only the operation of an audio remote control switch on the steering wheel.
※ When car models with non-Factory audio, use TBXE-T009.
