TBXE-T009
This is the installation set which install car AV by using brackets and wirings connector including this set.

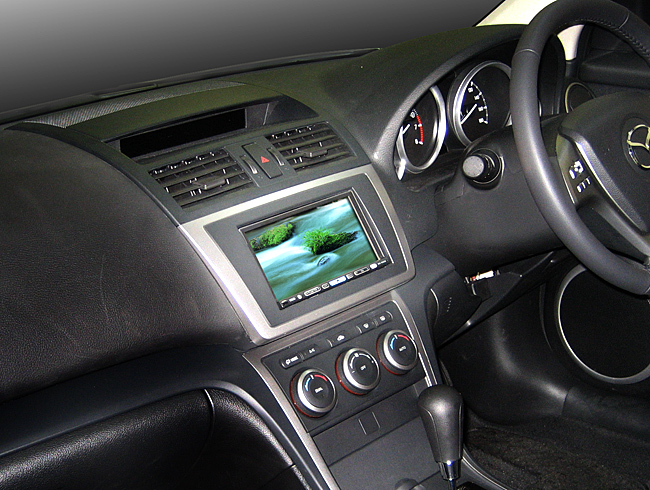

TBXE-T009 Installation example

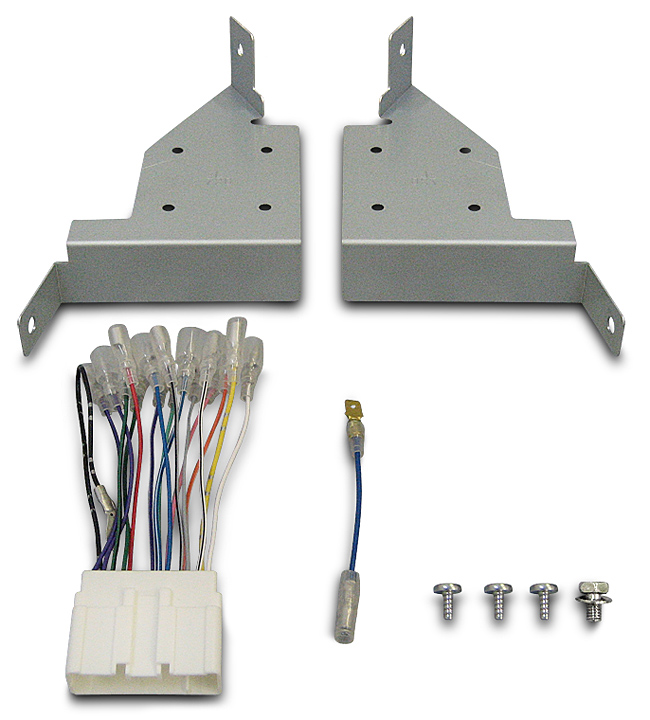

  • 1.Panel
  • 2.Bracket(L)(R)
  • 3.Power supply/front speakers / rear speakers Connector(24P)
  • 4.Antenna power supply conversion cord
 Designed Installation Size
Double DIN or 1 DIN + 1 DIN
Compatibility
Model Model Year Type
MAZDA6 Jun.2008 - Nov. 2012 For Car models with non-Factory audio

● Car models with the BOSE sound system use a separate amplifier.
Optional MAZDA sound system translator TBXE-X001 is required for proper operation.
● As cars with remote audio control switches on the steering wheel are disable, installation of optional parts FPCE-T001 enables the operation of an audio remote control switch on the steering wheel.
※ When car models with exclusive special MAZDA6 panel, use TBXE-T008.
